Gemtech GM-22 Suppressor

Rimfire Suppressor

The Gemtech GM-22 is a compact suppressor for .22 LR, .17 HMR and .22 WMR rifles and pistols. It is 5 inches long and weighs 2.5 ounces, so it adds little to a Ruger 22/45 or a small rimfire rifle. The core comes out of the tube as one piece, which makes cleaning much easier on a caliber known for fouling a can quickly. It suits plinkers, small-game hunters and anyone who shoots a lot of rimfire and wants a quieter range session.

Features

• Multi-Caliber Rimfire Rating — Rated for .22 LR, .17 HMR and .22 WMR, so one can covers the common rimfire cartridges.
• G-Core Monocore Design — The baffles are machined as a single piece (a monocore) that comes out of the tube whole for user cleaning and maintenance.
• 7075-T6 Aluminum Construction — The tube and core are made from 7075-T6, a heat-treated, high-strength aluminum alloy that keeps the weight down to 2.5 ounces.
• 1/2x28 TPI Direct Thread — The can screws straight onto a barrel threaded 1/2x28, the standard thread pitch on most .22 rimfire barrels, with no separate mount needed.
• Titanium Thread Insert — The mounting threads sit in a titanium insert, which holds up better to repeated mounting than bare aluminum threads.
• 36 to 39 dB Sound Reduction — Rated to cut 36 to 39 decibels of report, tested on a Ruger 22/45 pistol.
• Full Auto Rated In .22 LR — The suppressor is rated for full-auto fire in .22 LR.
• High-Temp Cerakote Finish — The tube wears a matte black Cerakote, a ceramic-based coating built to handle the heat a suppressor generates.
• Compact 5 x 1 Inch Profile — At 5 inches long and 1.0 inch in diameter, it keeps a rimfire pistol or rifle short and well balanced.

Build And Mounting

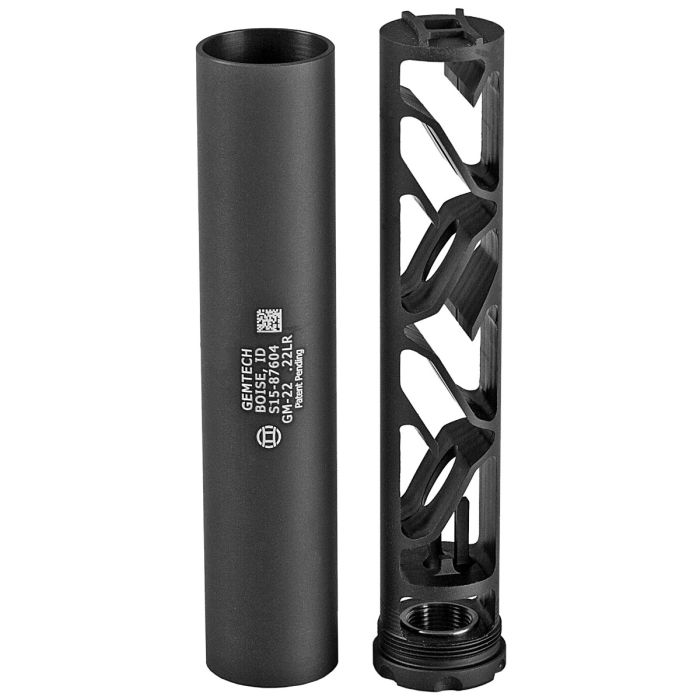

The GM-22 has two main parts: a plain outer tube laser-marked GEMTECH BOISE, ID, GM-22 .22LR, and the G-Core, an open-sided monocore with angled baffles and the threaded mount machined into its base. Both are 7075-T6 aluminum, and Gemtech applies its C3 finish to the core. It mounts directly to any 1/2x28 threaded barrel. A suppressor is an NFA-regulated item in the United States, so check federal, state and local rules before buying.
