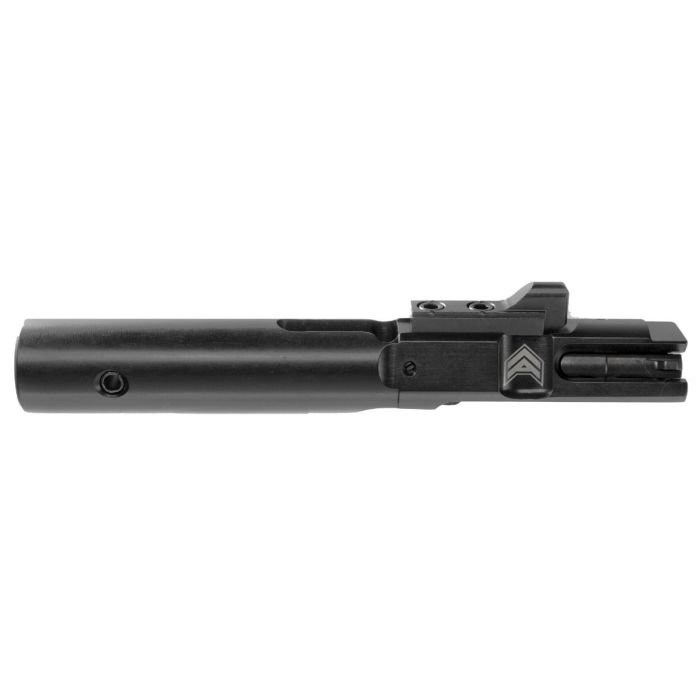

Angstadt Arms 9mm AR-15 Bolt Carrier Group

9mm AR-15 Carrier Group

The Angstadt Arms 9mm Bolt Carrier Group is the reciprocating heart of a pistol-caliber AR-15. It chambers each round, holds it while it fires, and pulls the empty case back out. A 9mm AR runs differently from a standard 5.56mm rifle, so it needs a dedicated carrier like this one. It suits builders putting together a 9mm carbine or AR pistol and owners replacing or upgrading the carrier in an existing 9mm upper.

Features

• Built For 9x19mm — The bolt face is sized for the 9mm Luger cartridge used in pistol-caliber AR builds, not for rifle rounds like 5.56mm.
• Blowback Design — There is no gas key on top, because a 9mm AR uses direct blowback, where the carrier's own weight and the buffer spring keep the action closed until pressure drops, with no gas tapped from the barrel.
• Fixed Bolt Face — The bolt is part of the carrier rather than a separate rotating bolt, so there is no cam pin or locking lugs to wear or lose.
• Pinned Extractor — An extractor at the front of the bolt grips the case rim and draws each spent case out of the chamber for ejection.
• Screw-Retained Top Block — A raised block on top of the bolt section is held in place by two hex-head screws.
• Black Finish — The carrier has an even, matte black finish from the bolt face to the rear of the tube.
• Engraved Angstadt Logo — The Angstadt Arms chevron is engraved on the side of the bolt section as a maker's mark.

Fit And Compatibility

This carrier goes in a dedicated 9mm AR-15 upper, paired with a 9mm lower and a buffer and spring set up for blowback. 9mm AR lowers are built around different magazine patterns, so check that your lower, magazine and bolt hold-open setup match before you order. Angstadt Arms specializes in 9mm AR components, and this carrier is made for that platform.
