DP28 47-Round Drum Magazine

DP28 Pan Magazine

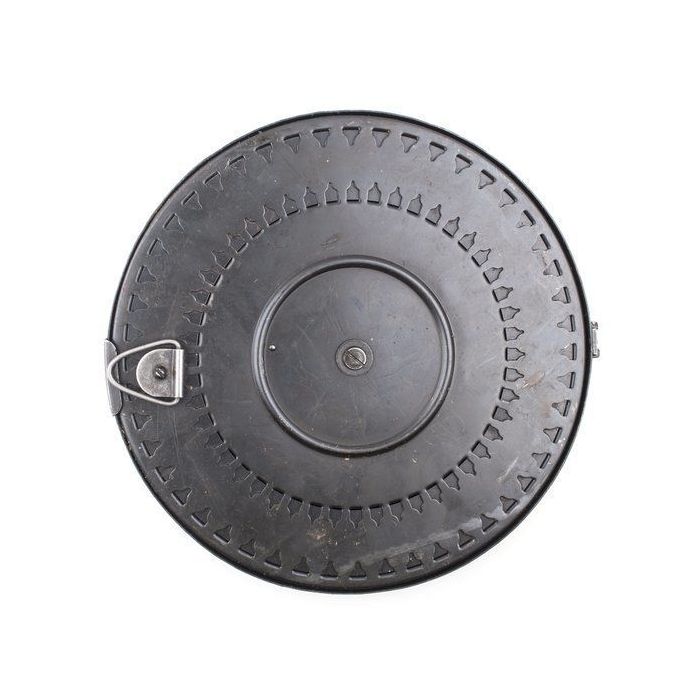

This is the flat, round 47-round magazine made for the Degtyaryov DP28 light machine gun, the squad automatic of the Soviet and Russian armies. Instead of a box, the DP28 feeds from a pan: cartridges lie flat in a spiral with the bullets pointing toward the center, and the magazine sits horizontally on top of the receiver. Collectors, DP28 owners and reenactors look for issued pans to complete a rifle or a display. Reproduction-quality castings rarely match the original stamped steel shown here.

Features

• 47-Round Capacity — The pan holds 47 cartridges of 7.62x54mmR, the rimmed Russian rifle round the DP28 fires.
• DP28 Pattern Fit — It is built to the original Degtyaryov light machine gun pattern and seats on top of the receiver.
• All-Steel Construction — Both the top cover and the base plate are pressed sheet steel with a dark finish.
• Perforated Top Cover — Two rings of triangular cutouts lighten the cover and let you see whether rounds are loaded.
• Central Hub — A raised center boss with a fixing screw holds the cover and the internal feed mechanism together.
• Feed Lips On Underside — A rectangular steel housing on the base plate guides each cartridge into the gun as the pan turns.
• Spring Side Latch — A hinged steel catch on the rim locks the cover to the base plate.
• Genuine Issued Item — Supplied as originally manufactured for Russian Army service, not as a modern copy.

Original Soviet Design

The DP28 was the standard light machine gun of Soviet infantry squads, and its pan magazine is one of the most recognizable shapes in military small arms. The low, wide profile was chosen to suit rimmed 7.62x54mmR ammunition, which feeds poorly from a tall box magazine. This example has the pressed-steel cover, latch and feed housing of the issued pattern, so it is correct for a DP28 build, a period display or a reenactment kit.
