AR15 Cartridge Ejector

AR-15 Bolt Ejector

The ejector is the small spring-loaded plunger in the face of an AR-15 bolt that pushes each spent case out of the ejection port after it is pulled from the chamber. When an ejector wears, chips or sticks, empties can drop weakly, hang in the action or cause a stovepipe. This United Defense AR15 Cartridge Ejector is a direct replacement part for shooters rebuilding a bolt, repairing a worn one, or keeping a spare in the parts kit.

Features

• AR-15 Pattern Ejector — Made to the AR-15 ejector shape so it seats in the ejector hole in the bolt face.
• Machined Retaining Flat — A flat cut along the body gives the ejector roll pin a surface to bear against, holding the ejector in the bolt while still letting it travel under spring pressure.
• Rounded Contact Face — The front end presses against the case rim and pivots the empty out through the ejection port as the bolt carrier moves rearward.

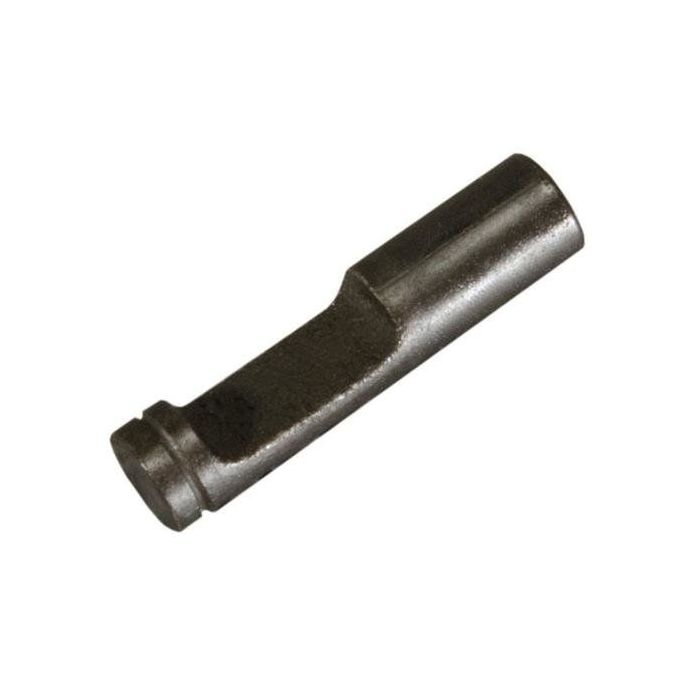

• Grooved Front End — A narrow ring groove is cut just behind the face, matching the profile shown in the photograph.
• Dark Metal Finish — The part has a uniform dark gray finish, as pictured.
• Ejector Only — This listing covers the ejector itself, so plan to reuse or replace the ejector spring and roll pin as needed.
• United Defense Manufacture — A commercial replacement part from United Defense, not a military surplus item.

Fit And Installation

The ejector goes into the bolt face on top of its spring and is held by a small roll pin driven through the side of the bolt, which rides against the machined flat. Replacing it means compressing the spring and drifting the roll pin, so a bolt vise block, punch set and some patience help. If you are not comfortable working on a bolt, have a gunsmith fit it and check function afterward.
