M16 Standard Bolt Carrier Group
In stock
- SKU
- BAD-BCG-M16
Description
Complete M16 BCG
The bolt carrier group, or BCG, is the moving heart of an AR-15. It chambers each round, locks the bolt, fires, extracts and ejects. The Battle Arms Development M16 Standard Bolt Carrier Group arrives as a full assembly: carrier, bolt, firing pin, cam pin and retaining pin. It suits a rifle build, a replacement for a worn group, or a spare to keep on hand.
Features
- M16-Profile Carrier — The carrier keeps the full-diameter lower rear section of the military M16 pattern, which adds reciprocating mass compared with a cut-down semi-auto carrier.
- Screwed-Down Gas Key — The gas key, the tube on top that takes gas from the barrel to drive the carrier back, is held to the carrier by two hex-head screws.
- MP-Marked Bolt — The bolt is stamped MP, the industry marking for magnetic particle inspection, a test that checks the steel for hidden cracks.
- Forward Assist Serrations — Angled notches along the right side give the forward assist plunger something to bite on when you need to push the bolt fully closed.
- Gas Vent Ports — Drilled ports on the carrier body let excess gas escape as the group cycles.
- Black Finish Throughout — The carrier, bolt, cam pin and retaining pin share a uniform black finish, with the firing pin left in bright metal.

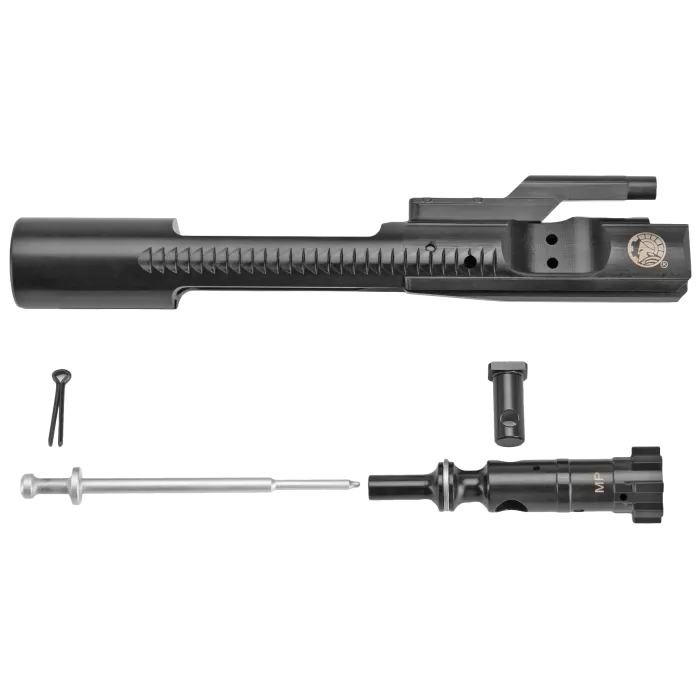

- Complete Assembly — Carrier, bolt, firing pin, cam pin and cotter-style firing pin retaining pin are all included, so nothing has to be sourced separately.
- Branded Carrier — The Battle Arms Development Spartan helmet logo is marked on the right side of the carrier.
Build and Fit
This is a standard-pattern group built to the familiar M16 layout, so it uses the same components and disassembly as any conventional AR-15 BCG. The five parts come apart for cleaning in the usual order: pull the retaining pin, drop out the firing pin, rotate and lift the cam pin, then slide the bolt forward out of the carrier. Lubricate the group before installing it in your upper receiver.
