AR15 Roll Pin Punch

AR-15 Roll Pin Punch

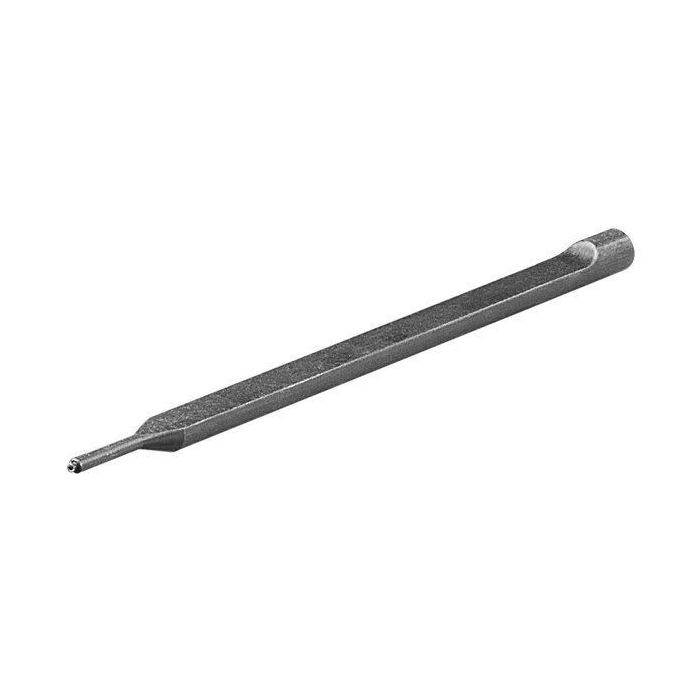

The AIM Sports AR15 Roll Pin Punch is a single-purpose tool for driving roll pins (hollow, split spring pins) into and out of an AR-15 lower receiver. Its long shank reaches across the top of the magazine well to the bolt catch roll pin, a job where a short punch tends to slip and leave marks on the receiver. It belongs in the kit of anyone building or servicing their own lower.

Features

• Pilot Tip — A small nub at the end of the punch sits inside the hollow center of a roll pin, keeping the punch centered as you tap.
• Slim Stepped Nose — The narrow front section matches the diameter of small AR-15 roll pins, so it follows the pin into its bore without catching the edge of the hole.
• Long Reach Shank — The extended body runs along the top of the magazine well, putting the tip on the bolt catch pin while your hammer works clear of the receiver.
• Flat-Sided Body — Faceted sides give your fingers a firm hold and stop the punch from rolling off the bench.
• Notched Rear End — A cutout near the striking end is visible on the tool, leaving a flat face for the hammer.
• Dark Finish — The punch has a dark gray finish matching the rest of a typical gunsmithing tool set.
• AR-15 Specific — Designed around the AR-15 lower receiver, with the bolt catch roll pin as its main job.

Fit And Use

Lay the shank across the top of the magazine well, seat the pilot tip in the end of the bolt catch roll pin, and tap the rear with a small hammer. The pilot holds the pin on line as it starts, which is where most scratched receivers and bent pins come from. The punch suits AR-15 pattern lowers and other roll pins of a similar small diameter.
